Quick Details

  • Type: Other Heat Insulation Materials
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: JOEN
  • Model Number: AL110
  • WEAVE: Plain, twill, satin
  • weight: 110g/m2 to 2000g/m2
  • width: 40inch and 60 inch
  • temperature: 300C
  • thickness: 0.1mm to 3mm

Packaging & Delivery

Packaging Details woven bag or carton
Delivery Time 1 day for MOQ



Any questions please contact Ms.Grace Wu (skype: missgracewu, whatsapp: +86 15858288142)! She is friendly, professional and always on line.

Product Description


Aluminum foil/film laminated fiberglass cloth

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation protects personnel or equipments by reflecting radiant heat. Joen uses the high temperature adhesive to ensure the maximum working temperature up to 150 0C.


-One side or both sides aluminum foil/film laminated available.

-Thickness of aluminum foils available from 0.0007mm to 0.005 mm

-Width of fabrics available from 1000mm to 1520mm.


Main applications:

-Heat-retardant curtains or screens

-Thermal insulation covers, mattress and pads

-Welding/fire protection

-Safety cloth and apron

-Other fire and smoke control systems

Item   no.Weave

Warp     Weft

density  per cm

Weight   ThicknessAluminum foil/film Coating Thickness

Tensile Strength N/5cm

Warp &  Weft


Temperature  Resistance

Fabric                 Gule

AL-110Plain12*12 110g/m20.1mm7/18/25micron2025*1216      100-120cm500°C300 °C
550 °C
300 °C
3x1 twill
550 °C
300 °C
AL-84215Plain8*6300g/m20.38mm7/18/25micron901*676101-152cm550 °C300 °C
AL-HT2025Plain8*5.7610g/m20.75mm7/18/25micron2025*1216101-152cm550 °C300 °C
AL-M33Plain6*31120g/m21.5mm7/18/25micron3000*2200101-152cm550 °C300 °C
AL-FW600Plaid15*15600g/m20.55mm7/18/25micron6000*5000101-152cm550 °C300 °C
AL-3784Satin18*13880g/m20.9mm7/18/25micron8000*6000101-152cm550 °C300 °C
ALS18-430 silicone coated 3x1 twill18*13430g/m20.43mm7/18/25micron6000*4500101-152cm300 °C300 °C


 Skype: missgracewu

Wahtsapp: +86 15858288142


Packaging & Shipping




 Skype: missgracewu

Wahtsapp: +86 15858288142

Related Products
Fire blanketWelding blanket safe weld habitatsilicone coated fiberglass cloth fiberglass cloth
Company Information
Lanxi Joen Fiberglass Co.,Ltd

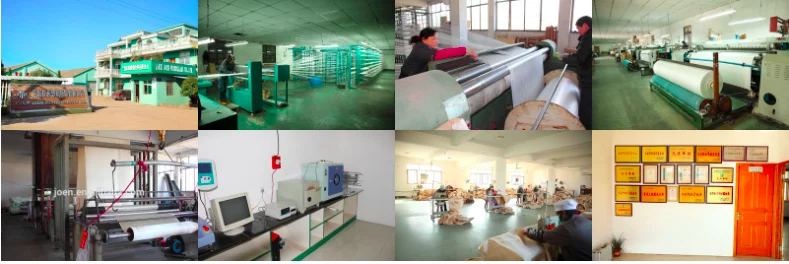

Our company was established in year 2001, which is  a professional manufacturer of  fiberglass cloth, high silica cloth, fire blanket, welding blanket, fiberglass woven tapes, etc.
120 workers, 12000 m2 non-dust workshop,  3 years' vendor of Wal-mart, ISO, CE & MSDS  certificated, two hours reach Shanghai/ Ningbo port, this is how we keep superior quality and competitive offers for global valued customers.
Branch office:  1. Hangzhou Joen sales branch, 2. Hangzhou Tonglu WPC branch , 3.Jiangxi Ganzhou Weave branch,  4. Nanjing Tongtian Kangte Coating branch 5. Finland design & sales branch
Production Scope:  fiberglass fabric/cloth, fiberglass tape, silicone rubber/Alumilum foil/Vermiculite/PVC coated fiberglass cloth, high silica cloth, texturized cloth, Tarpaulin cloth/tent, fire blanket, welding blanket, welding habitat/enclosure/PPWE, thermal insulation jacket/cover/blanket, and other related fire safety products.

Application: Oil & gas, Shipyard, Aviation, steamship, wind energy, sports goods, FRP, insulation, ordnance, construction, firefighting, fire-retardant, and so on.
Main markets: North America, Europe, Asia, Middle East, and South America, etc.
Quality Management System: ISO9001
Third-party inspection reports:
Fire blanket:    BS EN1869:1997, EN1869:1997 certificate, AS/NZS 3504:2006, LPCB
Welding blanket: MSDS report. Welcome customer to make the FM approval together.
Silicone rubber coated fiberglass cloth: UL94 flammability test report
PVC coated fiberglass cloth/fabric: fire-retardant test  report by SGS
High silica cloth: MSDS report
Expect your Contact!
Skype: missgracewu
whatsapp: +86 1585828814

1.  Are you a trading company or manufacturer?

  -We are manufacturer with more than 14 years production experience, and have our own factory in Lanxi,Zhejiang.


2. What certificate do you have?

   - CE,SGS, MSDS, ISO9001, and so on.


3. Can you provide OEM service?

   - Yes, welcome.


4. Can you send me a sample? Is it free?

  - Yes, the samples is free, but the courier charge should be on your side


5.The price that you offer me, Could be more discount?
It will depend on order quantity.

6.Is there any warranty, can exchange it?
Normally our warranty period is six months. If it is quality problem, we support a replacement, refund.

7.Mode of transportation
By sea or by air or by courier or by train

8.what's  the quality of the products?

Customers' feedback say the quality is very good!

9.How about the Delivery time?

Normally 7-30 days after receiving the advance payment. Samples will be prepared within 1-3 Days.
